WPC Villa Fence Installation: Guide for Luxury Villa Projects

Installing a WPC villa fence around a high-end property is not simply a matter of putting posts in the ground and attaching boards. It demands careful planning, precise execution, and materials engineered to hold up against real outdoor conditions — UV exposure, coastal humidity, temperature swings, and heavy seasonal rainfall. Wood-plastic composite fencing has earned its place in luxury residential projects across Europe and North America because it combines the warmth of natural timber aesthetics with structural durability that untreated wood cannot match. Whether you are a fence contractor managing a large estate boundary, a developer specifying materials for a boutique villa community, or a homeowner taking charge of your outdoor renovation, this guide walks you through every practical stage of the installation process — from site planning and post foundations to panel fitting, corner detailing, and finishing. The goal is a boundary that looks intentional, performs consistently over its full service life, and requires minimal remedial attention. With the right preparation and quality composite materials, that outcome is entirely achievable.

What Should You Plan Before Installing WPC Villa Fence?

A good set up starts many months before the first post is pushed into the ground. It's easy to avoid making most of the mistakes that cost a lot of money when there is time to plan.

Boundary survey and permission

Before you do anything else, get a proper property inspection. When it comes to European cities and U.S. counties, boundary fencing that is higher than a certain height needs a permit or has to follow local zoning rules about how things should look in residential zones and how far away they should be from buildings. Before you buy anything, make sure you know these rules by calling your local government. An early inspection is much less expensive than a disagreement over the lines of the property that comes up during installation.

Site assessment

Write down what kind of dirt it is, how it drains, any changes in the slope, and any existing root systems or utility lines as you walk around the outside. The soil is clay-based, so it holds water. If the drainage isn't fixed, the posts may move over time. For footings that are stronger, sand or soft soil may need them. It will change your cutting plan and the materials you order if the slope of the land along the fence line changes a lot. You'll either have to put the panels up in steps or rake them.

Material calculation

Find out how long the straight parts of your fence are. Think about the length of gate posts, corner posts, and any other parts that need to be a certain size. Standard lengths for composite floor pieces are 1.8 m, 2.2 m, and 2.9 m. Figure out how far apart your bays will be so you don't end up with extra parts and waste. You should order a little extra in case you need to make changes on-site.

Tool and hardware checklist

You will need a spirit level, a circular saw with a fine-tooth blade that can cut through composite materials, a rubber mallet, stainless steel or galvanized fasteners, and the clip or secret fastener system that the maker suggests. As metal screws and plastic boards expand and contract at different rates, it is important to use the right fixing method to keep the panel stable over time.

Design decisions

You can pick the plan you want, whether it's a full privacy panel, a split design with some gaps, or a horizontal board layout. Check the color and how the surface feels. One finish that looks good with traditional villa building is a composite brushed villa fence finish that makes the wood look smooth and shows off the grain. On the other hand, an embossed or smooth sanded surface looks more up to date.

WPC Villa Fence Post Positioning, Foundations, and Panel Spacing

Putting in the posts is the most important part of making a fence. If you do it wrong, it will affect everything else.

Post spacing

Most composite fence panels have bays that are between 1.8m and 2.9m wide, but this can change depending on the length of the panel you choose. If you span more than what the maker says is safe, the middle panel will bend when the wind blows. Mark the spots of all the posts with pegs and a string line before you start digging. Make sure the gate openings are the right size for the hardware you've chosen and any room you need for swinging or moving.

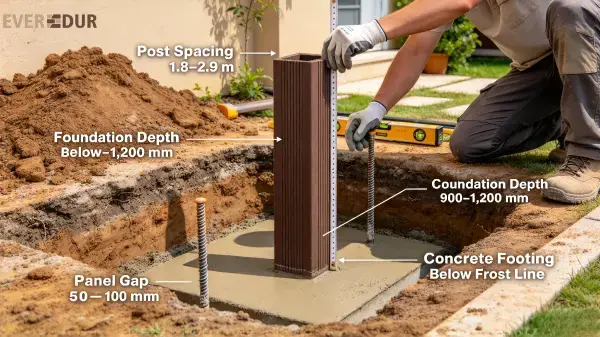

Foundation depth and diameter

As a general rule, one-third of the length of an outdoor post support should be below grade. For a fence panel that is 1.8 m above the ground, your post should be about 900 mm deep. In frosty parts of northern Europe or North America, the base of the footing must be below the frost line, which can be anywhere from 600 mm to 1,200 mm. This way, the base won't move when it freezes and thaws. If the hole for the post is at least three times the post's width, there will be enough concrete to cover all sides.

Concrete mix and curing

You should use a standard 1:2:4 mix or one that sets quickly. Cover the post with a bit of concrete around the base so that water doesn't pool on top of it. Pour the concrete down until it's just below the ground. Do not put any weight on the side for at least 48 hours after it has been poured. You should let this dry for longer if it gets colder.

Post material selection

It is possible for composite panel systems to use both aluminum alloy posts and stainless steel posts. In nature, aluminum is lighter and less likely to rust. This is helpful near the coast, where steel that isn't sealed rusts faster in the salty air. This type of steel is stiffer, so it works better for long bay spans or places where the wind blows a lot.

Panel spacing and ventilation

Even composites that are very dense work better when there is enough air flow behind the face of the panel. There is a small space between panels that are next to each other and between the bottom of each panel and the ground. This space keeps trash from piling up and letting moisture in. On the product specification sheet, it says how much thermal expansion gap should be at the ends of the panels. For most installations, this is between 5 mm and 8 mm per joint. It depends on the temperature range you expect at the spot.

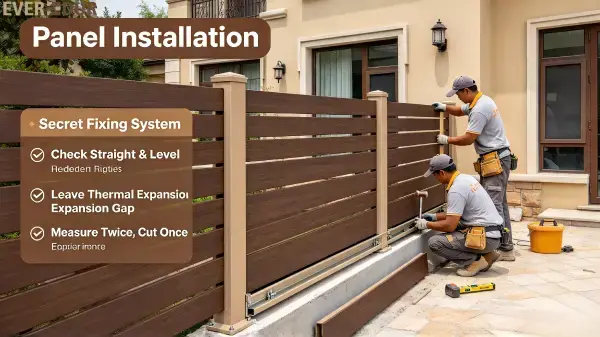

How to Install WPC Villa Fence Panels With Posts and Fixings

Set the posts in place and let the concrete dry. Then, put up one end of the fence run at a time.

First, set the base channel or bottom rail on the posts so that they are the right height off the ground. Make sure there is always some space between the panel's base and the ground. The lower part of the panel shouldn't stay wet for too long, so a gap of 50 mm to 100 mm is usually a good idea. The maker will tell you how to use a secret fastener system or clip track to slide or clip the composite boards into place inside the frame. The screw heads on the panel's face are hidden by this secret mounting method. This gives the panel a smooth, clean look like a WPC villa fence in a high-end home setting.

Make sure that each panel is straight and level as you go. A spirit level is always needed to check if the ground is level, whether it's on the ground or in the air. At each post, the fixing clips should fully engage, and the board ends should fit inside the rail channel without having to be pushed. A circle saw with a fine-tooth carbide blade makes it easy to cut composite materials. It's hard to fix a combined shape that you cut too short. Don't forget to cut once and measure twice.

As you work your way along the fence run, remember to leave yourself enough space at each end of each board for heat expansion. Black boards may expand a little more than white boards in places with a lot of UV rays. Before you decide on a spacing, check the detailed data sheet from your provider to make sure.

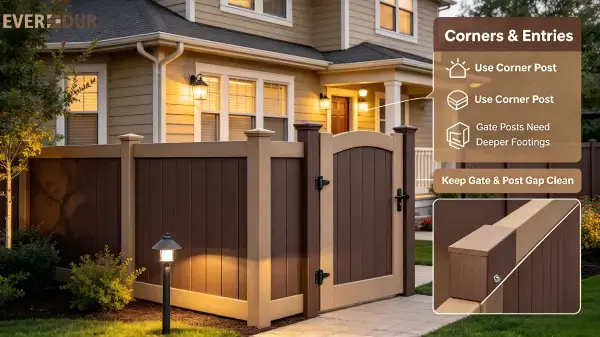

WPC Villa Fence Installation Around Gates, Corners, and Property Entrances

Gates, corners, and openings are tougher to install, and people who are looking at the property will be most interested in how well the images look there.

Corner detailing

To connect two fence runs at 90-degree angles, you can use a corner post or a channel shape that has been cut in half. A bad idea is to join two panels together at a corner without a post. This makes the line look weak and sloppy. For angles that are sharp or steep, like those found in organic landscape plans, use post clamps that can be moved to line up the angles with WPC luxury villa fence. Next, make sure the ends of the pieces are cut at the right angle.

Gate posts and swing hardware

Gate posts have to hold moving weight, but fence posts don't. Most of the time, they need wider cross-sections for the posts and deeper leg holes. Make sure that the hinges can hold the weight of the whole gate. It's possible for composite gates with filler panels to be heavier than they look. Before the first season is over, a heavy gate with weak springs will sag and get stuck. If your front door is on a hill, put a gate latch or other stopping device high enough so that the gate can't open on its own.

Property entrance aesthetics

From the outside, the door is the most noticeable point. The little things matter: tracks that are always straight, panel faces that are smooth, post cap shapes that match, and a gap between the gate and post that is clean. For well-lit sidewalk edges, you might want to think about adding light tubes to the door posts that are attached to the posts. You can order composite post systems with low-voltage wire conduit holes that are already cut out.

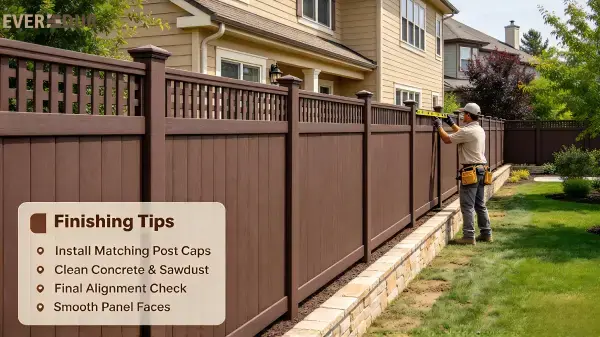

WPC Villa Fence Finishing Tips for a Seamless Outdoor Boundary

Finishing touches are what separate a fence that looks like it was carefully planned from one that just looks like it's there to keep people out.

Post caps and rail end covers

Cover all of the ones that aren't covered with post caps that match the tops of the posts. If you don't cover your hollow posts, rainwater will collect inside them and speed up the rusting process. In the winter, the ice can cause cracks in the concrete footings as it expands. Rail end caps on fence ends keep dirt out and make the edge look nice and clean.

Cleaning after installation

As soon as the concrete, sawdust, and other construction waste is off the panel surfaces, it will become the texture. It is possible to clean most wood surfaces with a soft brush and some light soap. The finish can be damaged by rough pads or cleaners that contain solvents.

Final alignment check

One last walk along the finished fence line to make sure the strings are straight, the posts are level, the panels are level, and the gate opens and closes correctly. If you need to make small changes to composite panels, it's easy to re-clip or re-fix them, but it's better to fix these issues before the site is turned over.

Long-term care

The surface should be washed once or twice a year to keep it free of germs. The item doesn't need to be treated, coated, or painted again while it's still useful. It is helpful and simple to use, which is one reason why composite outdoor fences are the norm for high-end homes that don't need much upkeep.

Conclusion

You need to plan ahead, be careful, and use materials that are made to last outside if you want to put up a good WPC villa fence. With a well-thought-out plan, well-designed post supports, a good secret fixing system, and close attention to detail at corners and gates, you can build a border that lasts for at least ten years with little upkeep. Choosing or putting up a fence on a high-value property will be more stable and look better in the long run if you take the time to plan and lay the foundations.

FAQ

Q: How deep should fence post foundations be for a WPC villa fence in a frost-prone climate?

A: In frosty parts of northern Europe and North America, the post footings must go below the frost line to keep the ground from rising and falling as it freezes and thaws. This usually means a depth of at least 900mm to 1,200mm, but it depends on where you are. Check with your local building rules or a structural expert for depth standards that are specific to your spot.

Q: Can composite villa fence panels be cut to non-standard lengths on site?

A: Yes. Shapes made of WPC composite can be cut cleanly with a circle saw that has a blade with fine teeth made of carbide. Before you cut, carefully measure and remember to remember the temperature expansion gap that the manufacturer tells you about at each panel end. As always, you should protect your eyes and lungs when cutting composite materials.

Q: How much gap should be left between WPC fence panels and the ground surface?

A: Between 50 mm and 100 mm of space should be left between the bottom edge of the panel and the finished ground level. This space keeps air moving along the bottom face, which keeps dirt and moisture from building up at the panel's base. The stuff will last a long time because of these things.

Connect With Everdur: Inquiries for Fence Contractors, Developers, and Resellers

Everdur can help you at every stage of your project, whether you are a construction company bidding on a high-end residential boundary, a fence contractor looking for a reliable composite material partner, a building materials wholesaler looking for a steady supply, or a homeowner planning the perimeter of your own villa garden.

For construction firms and fence contractors: You can get technical specs, sample panels, and project-based prices from us if you're a building company or fence builder. Everdur can keep shipping times fixed for large orders because it has more than 50 production lines.

For building materials wholesalers and resellers: For people who sell and buy building materials in bulk: Trade partners who are qualified can get free samples and special discounts. Contact us to talk about lead times and how much you need.

For end customers: For end users: Your question comes with free design help and step-by-step directions on how to put it. Our expert staff will help you pick the right profile, color, and fixing method for your project if you bring us your measurements and site maps.

All Everdur WPC villa fence products meet CE certification standards (EU), comply with ASTM D7039 test requirements (U.S.), and align with GB/T 24137 material standards. Our manufacturing processes carry ISO 9001 and ISO 14001 certification, and our products hold FSC, REACH, and RoHS compliance status. Recycled-content materials meet Grade A recycled HDPE standards, and our panels conform to E0 environmental benchmarks for indoor air quality safety.

As a dedicated manufacturer, Everdur has supplied outdoor fencing to clients across more than 60 countries. To discuss your project requirements or request a sample, reach out to our team directly: Contact us at violet@wpcsupplier.com.

References

1. European Committee for Standardization. EN 15534: Composites Made from Cellulose-Based Materials and Thermoplastics (Wood-Polymer Composites or Natural Fibre-Polymer Composites). Brussels: CEN, 2014.

2. ASTM International. ASTM D7032: Standard Specification for Establishing Performance Ratings for Wood-Plastic Composite Deck Boards and Guardrail Systems. West Conshohocken, PA: ASTM, 2021.

3. Forest Stewardship Council. FSC Certification and Chain of Custody Standards for Composite Timber Products. Bonn: FSC International, 2020.

4. Building Research Establishment (BRE). Good Practice Guide: Selection and Specification of Exterior Timber and Composite Fencing for Residential Properties. Watford: BRE Press, 2019.

5. American Fence Association. Fence Industry Standards Manual: Post Foundation Requirements, Lateral Loading, and Frost Depth Considerations. Columbus, OH: AFA, 2022.

6. European Outdoor Furniture and Composite Materials Federation. Technical Guide to Thermal Expansion Management in Wood-Plastic Composite Outdoor Structures. Brussels: EOFCMF, 2021.

7. U.S. Department of Housing and Urban Development. Residential Fence Permitting, Zoning Compliance, and Property Boundary Guidelines. Washington, D.C.: HUD Office of Policy Development and Research, 2020.
